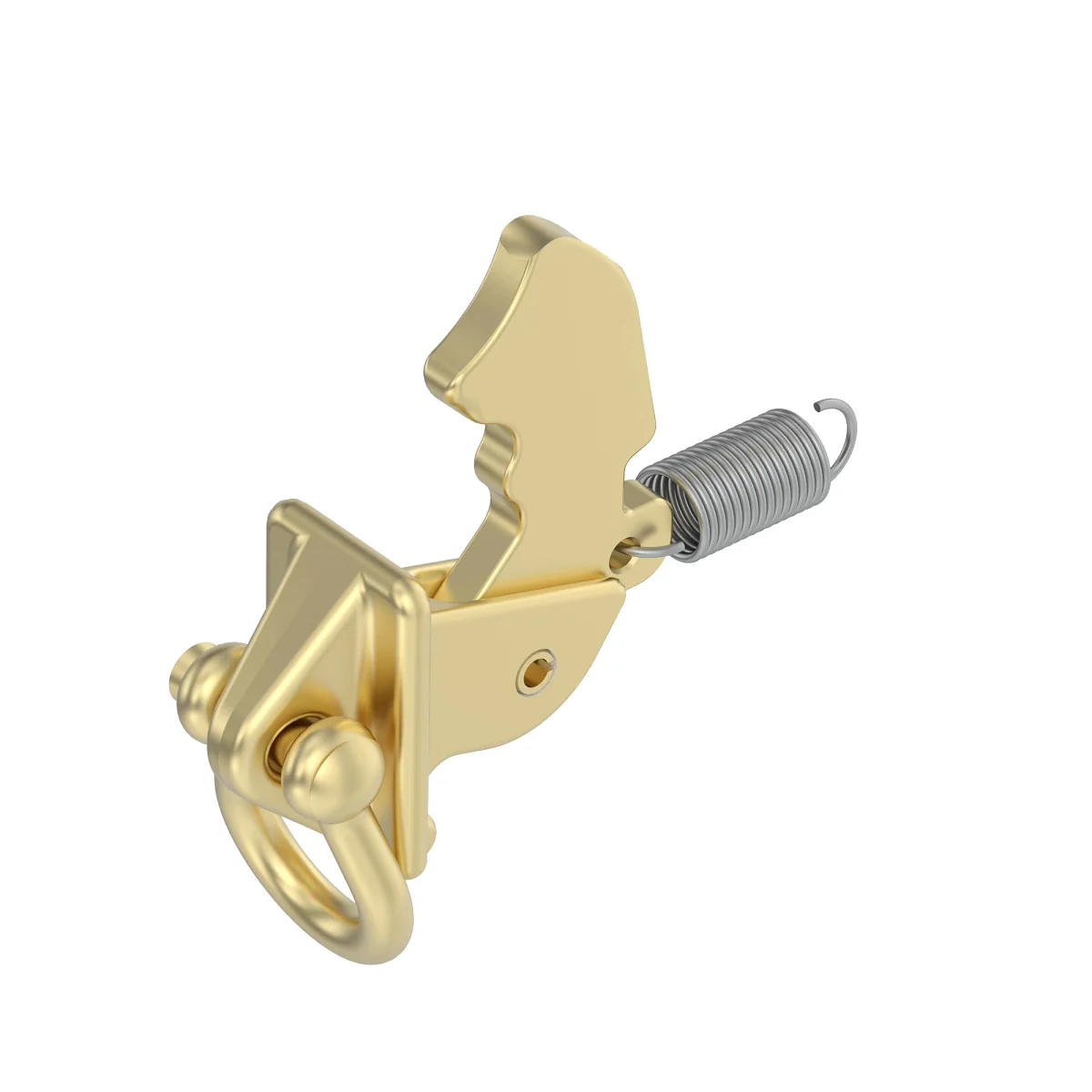

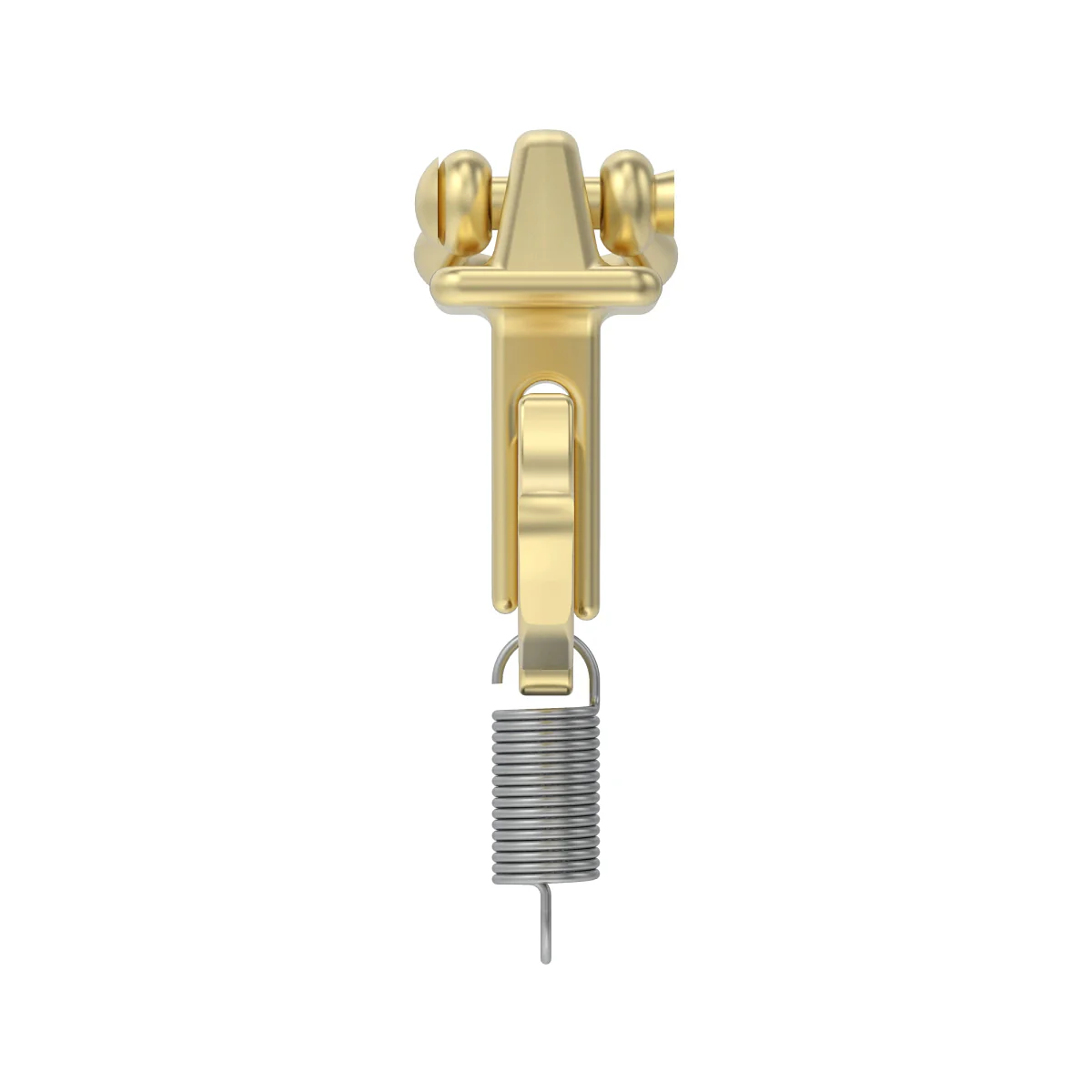

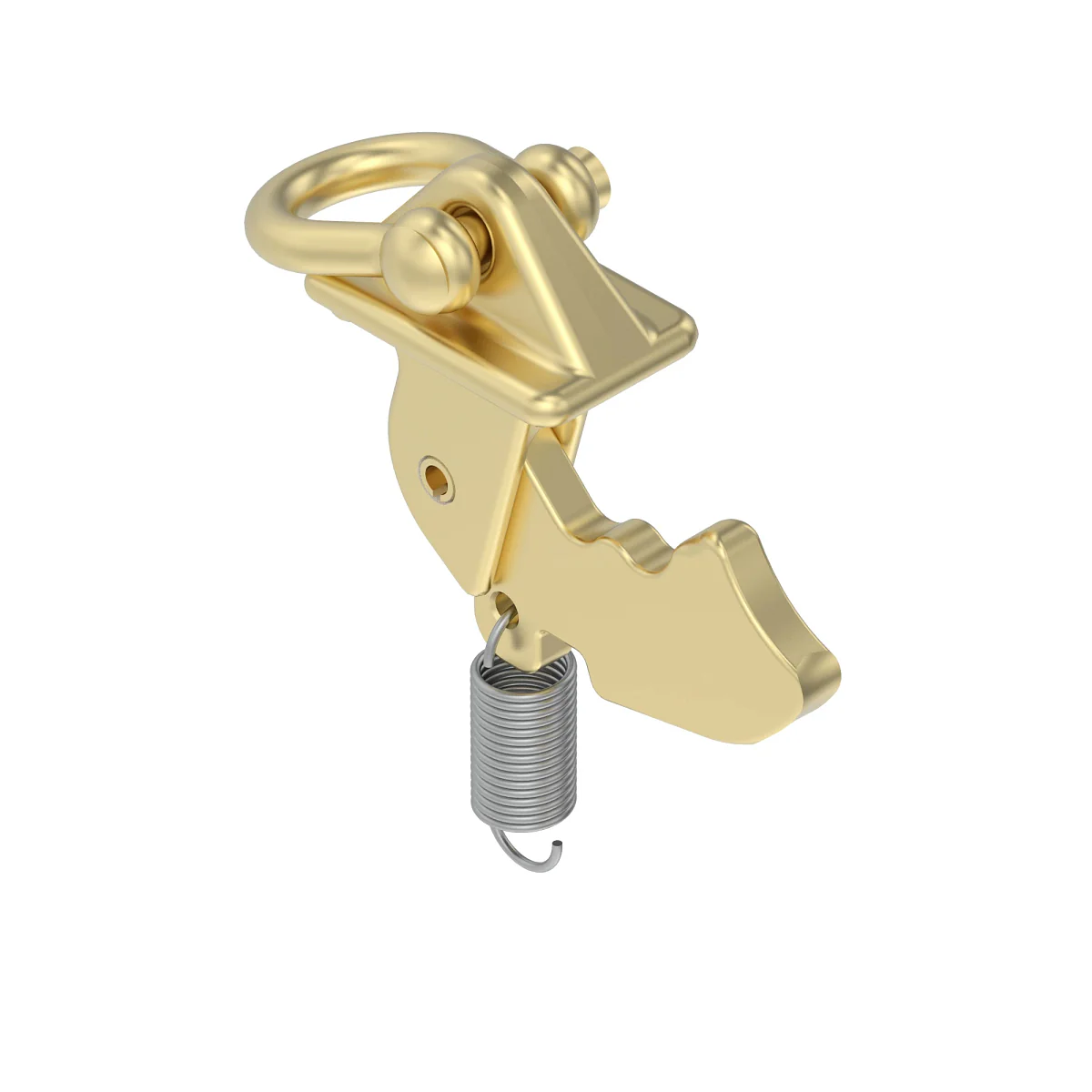

John Deere Heavy Duty Pawl Assembly - AL117727

The John Deere AL117727 Heavy Duty Pawl Assembly is an OEM hitch component designed for secure engagement within the tractor’s three-point hitch or rockshaft system. This description provides precise, use-case oriented details to aid installation, maintenance, and compatibility assessment.

Key Features

• Heavy-Duty locking mechanism designed to securely engage and lock components within the hitch or rockshaft system.
• Durable construction built to withstand high mechanical loads and continuous agricultural use.
• Reliable implement engagement that helps maintain stable positioning of attached implements during operation.
• Precision OEM fitment to ensure proper installation and compatibility with John Deere hitch assemblies.
• Genuine John Deere quality as an Original Equipment component for dependable performance and extended service life.
• Ideal for replacing worn or damaged hitch pawl components and servicing three-point hitch and rockshaft assemblies.

Product Details

• Product Type: Heavy Duty Pawl Assembly
• Brand: John Deere
• Part Number: AL117727
• Weight: Approx. 0.63 kg (1.39 lb)
• Dimensions: Length 10.16 cm; Width 8.89 cm; Height 3.05 cm
• Application: Designed for use within the hitch or rockshaft locking system of compatible John Deere agricultural tractors

Compatibility

• Commonly used on larger John Deere tractors equipped with heavy-duty hitch systems.
• Compatible models and series include:
  • 6000 & 6010 Series
  • 6100, 6200, 6300, 6400, 6500, 6600, 6800, 6900
  • 6110, 6210, 6310, 6410, 6510, 6610, 6810, 6910
  • 6020 & 6030 Series
  • 6120, 6220, 6320, 6420, 6520, 6620, 6820, 6920
  • 6130, 6230, 6330, 6430, 6530, 6630, 6830, 6930
  • 6M and 6R Series: 6105M, 6115M, 6125M, 6140M, 6155M, 6175M, 6195M, 6105R, 6120R, 6130R, 6145R, 6155R, 6175R, 6195R
  • 7 Series and Larger Frame: 7200, 7210, 7400, 7410, 7510, 7700, 7710, 7800, 7810
• Note: Compatibility may vary depending on hitch configuration, implement category, and serial number range.
