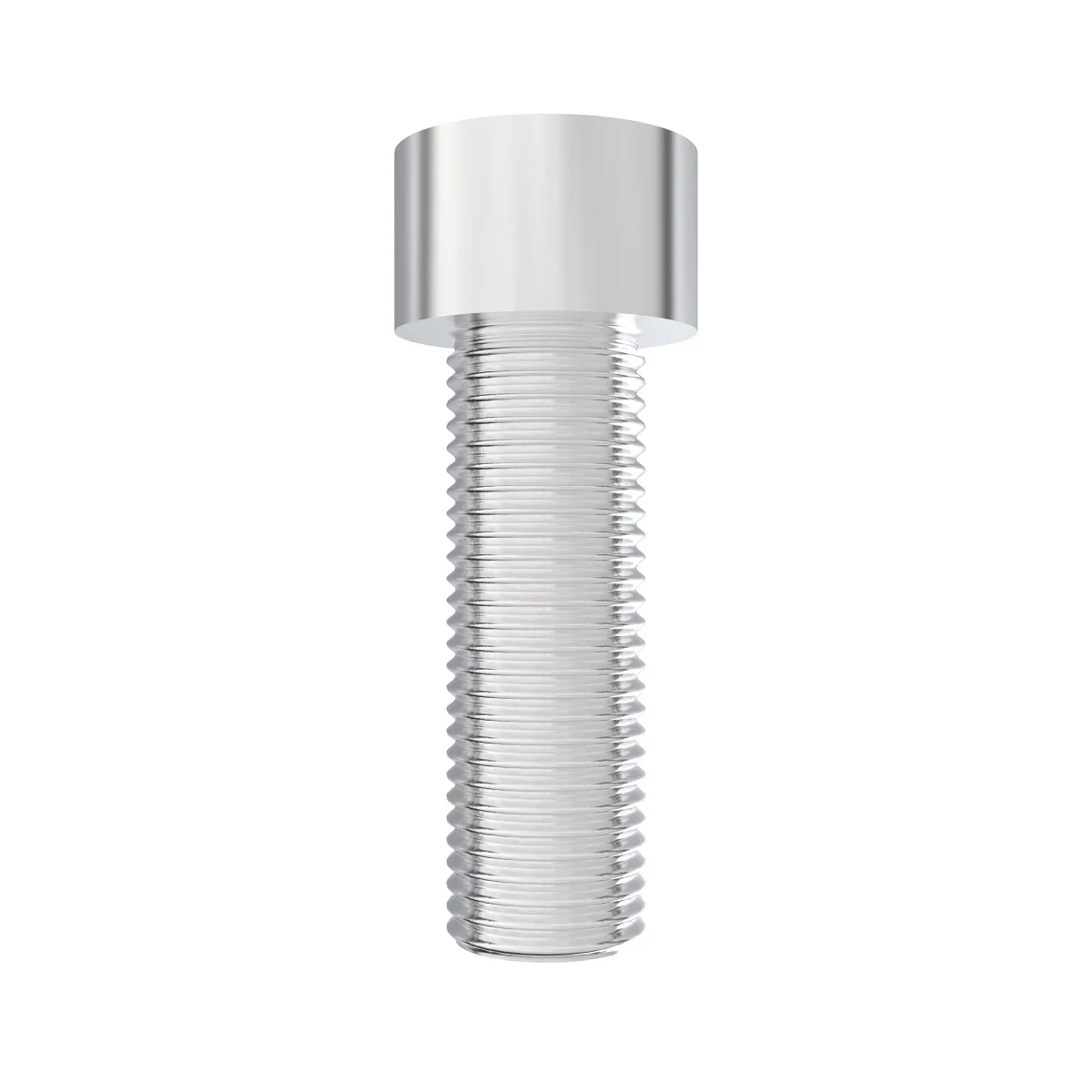

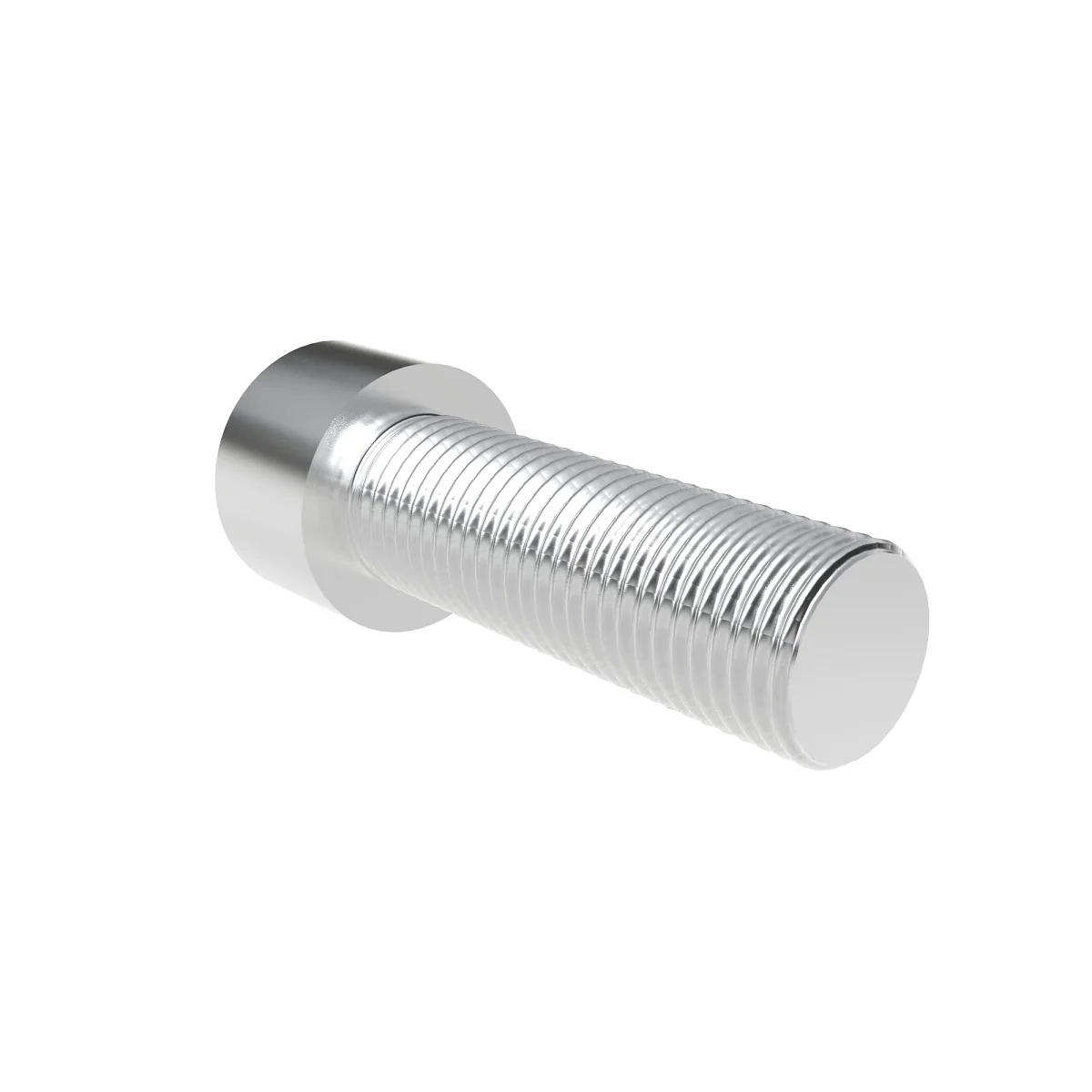

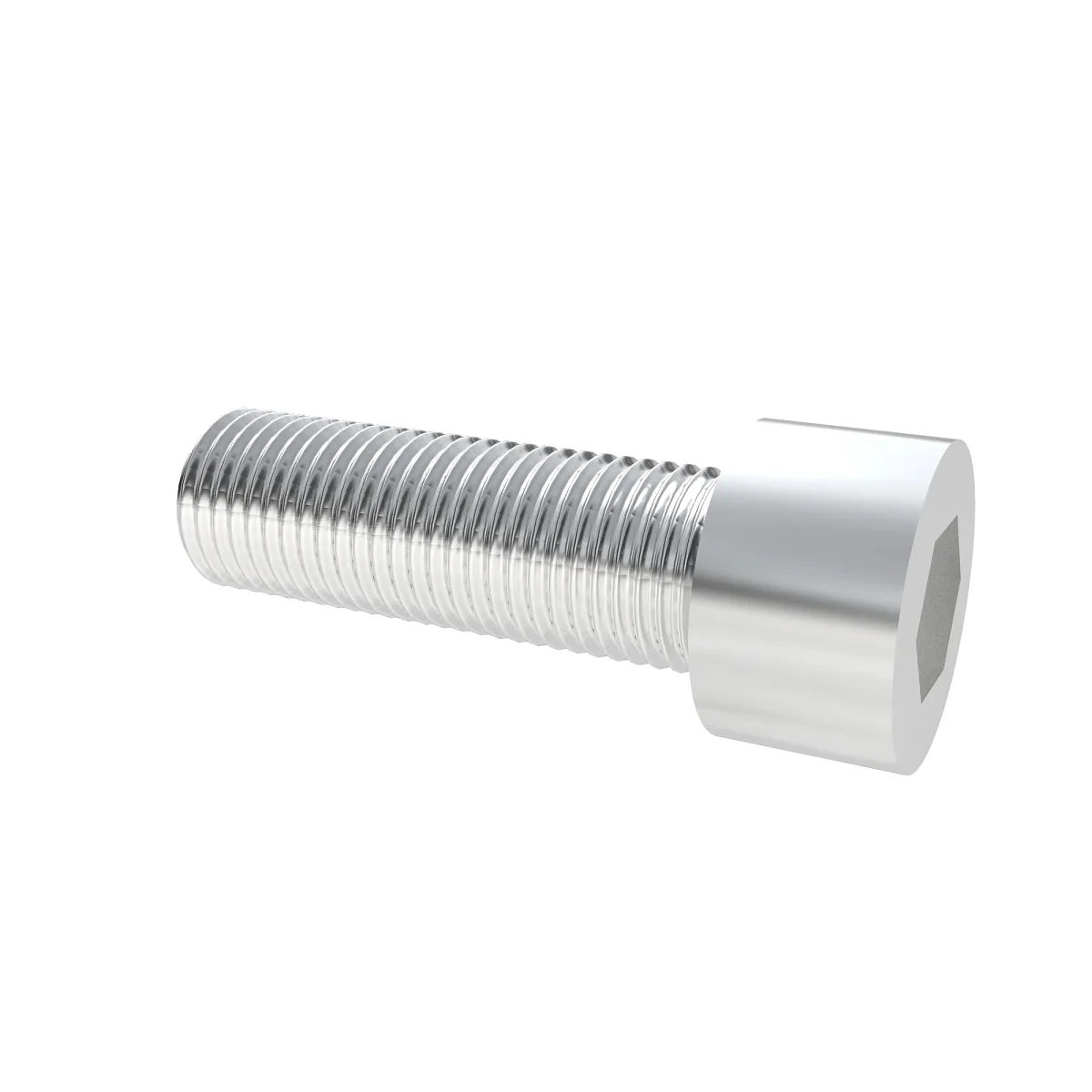

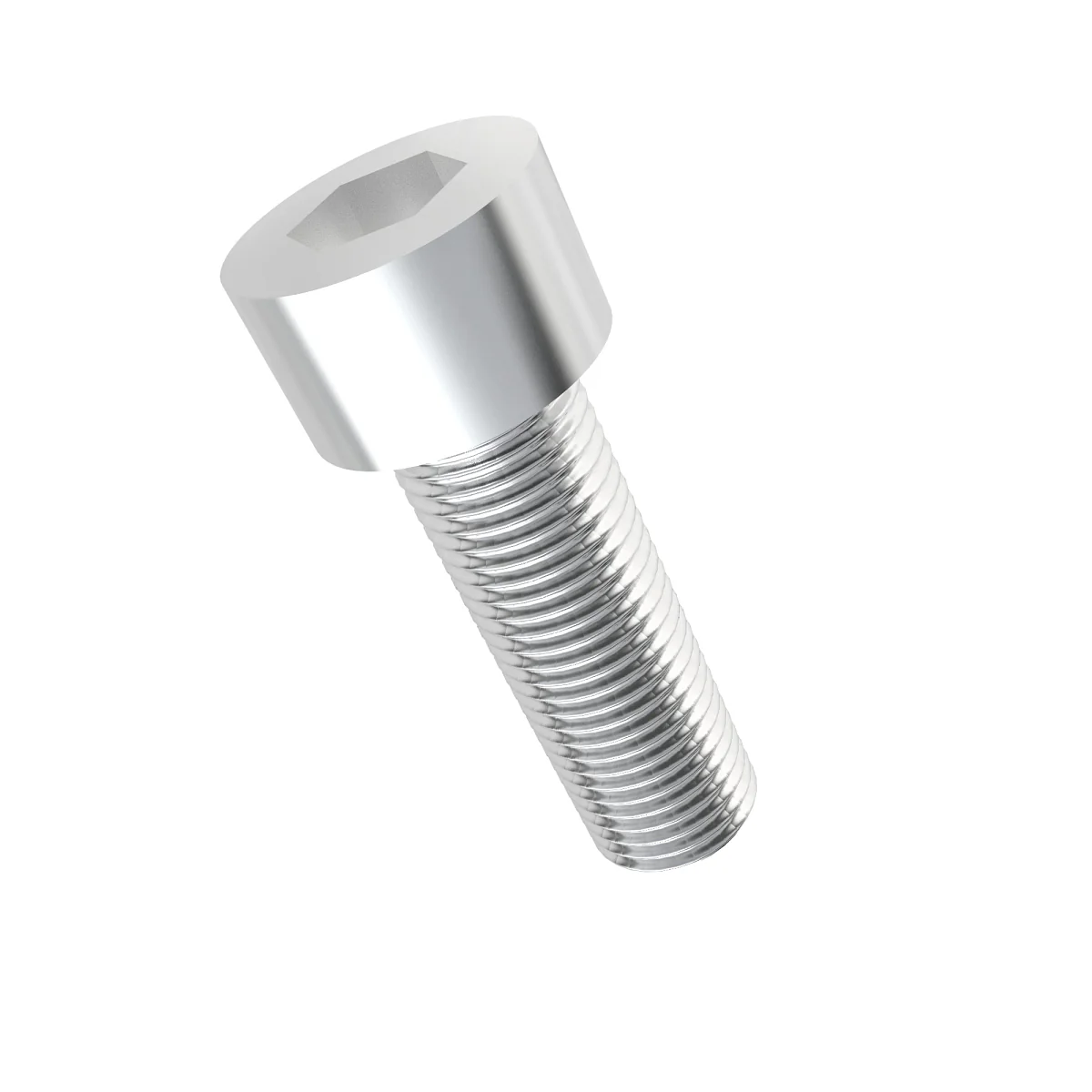

John Deere Cylindrical Head Screw, M6 X 20 - 19M7603

Key Features

• Cylindrical head tension fastener with external threading for reliable clamping during assembly.
• Through-hole insertion capability with compatibility for either standard internal threads or self-tapping into suitable materials to form a mating thread.
• Head-turn operation enables tightening or release without requiring specialized tooling; suitable for repeated assembly cycles.
• Dimensioned as M6 x 20 (thread diameter 6 mm, length 20 mm); product code 19M7603, identifying the John Deere cylindrical head screw.
• Designed for use in John Deere equipment and similar mechanical assemblies that rely on M6 fasteners and through-hole junctions.

Product Details

• Product name: John Deere Cylindrical Head Screw, M6 X 20 – 19M7603
• Type: headed externally threaded tension fastener
• Threading: external thread; through-hole capable; may mate with internal threads or self-tap to form mating thread in compatible materials
• Dimensions: M6 x 20
• Head style: cylindrical head
• Part number: 19M7603

Compatibility

• Suitable for components with M6 internal (tapped) threads or standard M6 through-hole interfaces.
• Works in assemblies where the screw can be inserted through holes and tightened by turning the head.
• Self-tapping capability available in compatible base materials to form a mating thread.
• Best suited for mechanical systems requiring a reusable tension fastener with straightforward disassembly.
